Brand Name : CSYHT
Model Number : HODF-1U-144C
Place of Origin : China
MOQ : 10 pcs
Payment Terms : L/C, D/A, D/P, T/T
Supply Ability : 300pcs per day
Delivery Time : about 6 days
Packaging Details : carton
Dimension : 482.6x420x44.2mm
Material : Aluminum rack, plastic MPO box
MPO box : 6pcs MPO cassette
Capacity : 144 fibers
Application : 19inch rack mounted type
Type : drawer
Price : Negotiable
144FO MPO fiber optic patch panel loaded 6pcs MPO modules for 19inch cabinet
Description:
HODF-1U-144C is high capacity ODF support fiber cable fast connection and distribution. It load MTP/MPO and ribbon fiber cable inside, easy to use by connector plug. It is an ideal equipment for supporting the fiber distribution in high-density capacity data center. It has simple & fast installation, compact design, high precision, plug and play etc. advantages.
Features:
1. Mini size MTP/MPO module, special design for saving space, high capacity;
2. Each module can support max. 24 LC ports to MTP/MPO;
3. Drawer type, easy to installation, convenient to fiber arrangement, save construction cost;
4. Made by aluminum material, light weight.
5. The module(Model: HD-05) is made by ABS plastic.
Application:
Data center, Network room
Rack Specification:
Model | Max. Capcity |
Dimension (W*D*H) |
Drawer Qty (pcs) |
Module Qty (pcs) |
HODF-1U-144C | 144 fibers | 482.6*420*44.2mm | 1 | 6 |
Module Specification:
Model | Dimension | Adapter type & Qty | The length of ribbon cable | |
HD-05 | 136*66*36mm |
LC quad (without flange) |
MTP/MPO | 350mm |
6 pcs | 2 pcs |

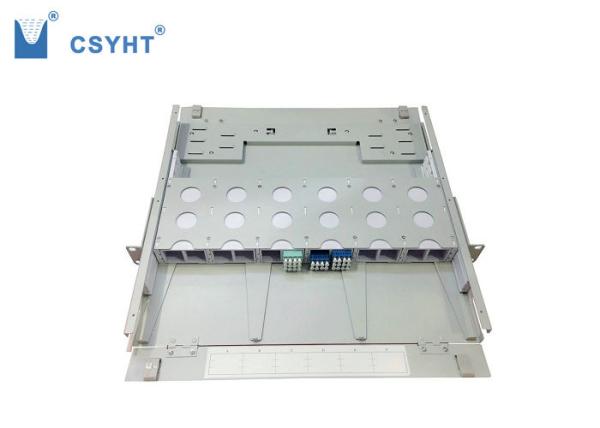

MPO module pictures:
![]() |
144FO Fiber Optic Patch Panel Loaded 6pcs MPO Modules For 19 Inch Cabinet Images |
