IP65 48FO FTTH Fiber Optic Terminal Box , Fiber Optic Cable Termination Box

IP65 outdoor 48FO fiber optic distribution box for wall mounted using

Description:

ODF-OW48A is an outdoor wall mounted fiber optic distribution box with 48 port that used for fiber optic cable splicing, distribution, connection and managements. It is made by cold roll steel with powder electrostatic spraying.

Features:

With plastic plates can manage both single fiber and ribbon & bundle fiber cables

FC, LC, SC, ST output interfaces optional

Large working space to integrate the pigtail, cables and adapters

Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite, easy for operation

Special design ensures the excess fiber cords and pigtails in good order

Inner components as follows:

Fiber Optic Splice Tray: storing fiber connectors (together with the protective components) and the spare fibers

Fixing Device: used for fixing the fiber protective tubes, the fiber reinforced cores and the distribution pigtails

The brim of the box is sealed.

Application:

Telecommunications subscriber loop

Fiber to the home (FTTH)

LAN/ WAN

CATV

Specification:

fiber optic cable junction box

ftth distribution terminal box

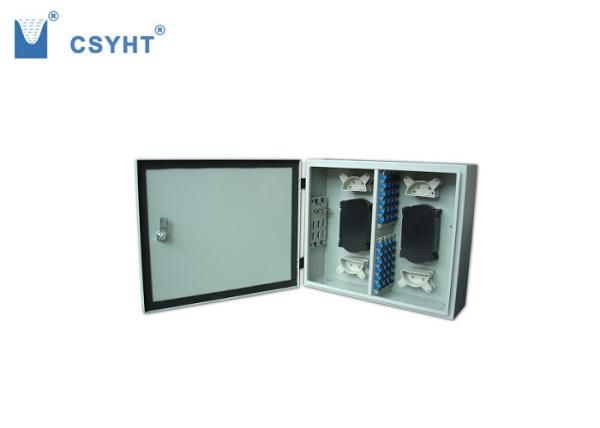

IP65 48FO FTTH Fiber Optic Terminal Box , Fiber Optic Cable Termination Box Images
