Sliding Fiber Optic Patch Panel ODF-RS-XX is suitable for the protective connection of loose tube optical cables or bundled pigtails and jumpers, branch optical cables and jumpers, steel tube type PLC splitters and jumpers, jumpers and jumpers. It is designed with 2U, 3U, and 4U heights, which are suitable for 48, 72, and 96-core distribution respectively. Chassis with 19 or 21 inch mounting ears, installed in a cabinet or rack.
Features:
1) It is made of high-quality cold roll steel&the surface is sprayed with electrostatic powder.
2) The front door has a hinge, a flip-type structure with elastic door buckle locking method.
3) Metal pull-out tray with slide rail, stainless steel limit buckle on the side and limit belt on the back to ensure high reliability.
4) The fiber splice stray is made of high-quality plastic, including the fiber splicing module, fiber arrangement module, and adapter panel, which can be disassembled and interchanged.
5) The splice tray is installed on a stepped bracket, which can be superimposed according to the number of U. There are supporting members on the side of the tray, which can be flipped, and the splice is convenient.
6) There are horn-shaped fiber outlet ears on both sides of the box, which can well protect fiber cables and pigtails.
7) Pull-out chassis is suitable for standard 19 or 21 inch cabinet or rack installation;.
Product configuration (Can be customized according to the customer):
| ● Metal pull tray with slide rail | ●Metal front cover with hinges |
| ●Plastic splice tray mounting bracket | ●Plastic splice tray |
| ● Fiber arrangement module | ●Fiber splicing module |
| ●Adapter Panel with 12 FC Simplex Ports | ●Adapter Panel with 12 SC Simplex/LC Duplex Ports |
| ●Plastic support | ●Plastic support |
| ●Stainless steel limit buckle | ●Limit belt |
| ●Plastic elastic door buckle | ●Metal hinge |
| ●Velcro tie | ●19/21 inch mounting ears |
Product Dimensions(mm):
| Model | L | W | H | A | B | Splice Tray Q’ty | Adapter Q’ty |
| ODF-RS-0248 | 440 | 277 | 2U | 515.8 | 465 | 4 | 48 |
| ODF-RS-0372 | 440 | 277 | 3U | 515.8 | 465 | 6 | 72 |
| ODF-RS-0496 | 440 | 277 | 4U | 515.8 | 465 | 8 | 96 |
Product Details:
Delivery :
FAQ:
Could you provide free sample ?
Yes. We can provide free sample
How long is your warranty ?
1 Year.
Can we visit your factory ?
Yes. Surely welcome your visit .
Are you real factory ? All your products produced by your factory ?
Yes. Sure. Our factory was established in 2003. You can browse our factory video in Youtube:https://www.youtube.com/watch?v=gOzQetGSPfI
What's main products of your factory ?
Our factory mainly produce fiber optic equipments. Such as patch panel , termination box ,spliceclosure,patch cord. Pigtail
Can you provide OEM service?
Yes.we can . welcome you send your OEM specification to us .
How about your lead time ?
Usually we can delivery goods in 1~2 weeks after get your order. We have a good production capacity , We load a 40HQ container products in every week.
What's your standard package ?
We packed by export cartons. For the shipment by sea, we usually packed all cartons by pallets.
What about payment term?
T/T. At first 30% deposit, 70% balance paid before delivery . After have several cooperation,we can talk about credit .
How many pcs of your MOQ ?
Our MOQ is 50pcs for unit products

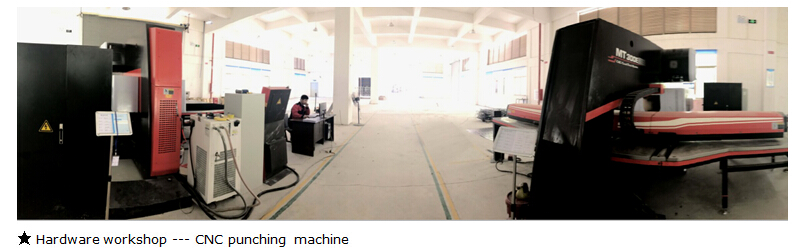

Factory Production:
