outdoor wall mounted Communication FTTH Drop Cable 48Core For Terminal cable Box
Fiber optic drop cable terminal box OTB-S48 is used as a termination point for the feeder cable to connect with drop cable. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features:
Standard size, light weight and reasonable enclosed structure.
Material: ABS plastic, water-proof IP65.
Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc.
Cable, pigtails, patch cords are running through its own path without disturbing each other.
Suitable for SC, LC, FC, ST ... etc. adapters and can load PLC splitter. .
Distribution panel can be flipped up, easy for maintenance and installation.
Indoor & outdoor wall mounted, pole mounted application.
Application:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV
Specification:

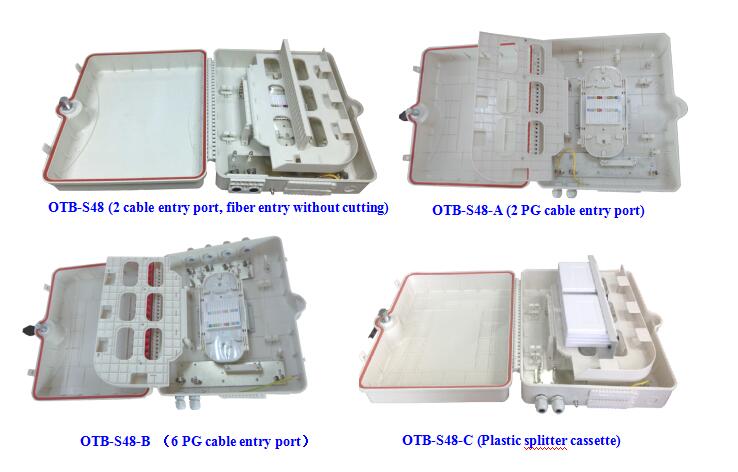

| Model | Max. capacity | Dimension (mm) | Splice tray | Splitter | Cable entry port | Adapter port |
| OTB-S48 | 48FO | 380*355.8*140.5 | 2 tray, each 24FO | 1pc PLC Splitter 1*8~32 box type | 2 cable entry port (without cutting) | 48 SC simplex |
| OTB-S48-A | 48FO | 380*355.8*140.5 | 2 tray, each 24FO | 1pc PLC Splitter 1*8~32 box type | 2 PG cable entry port | 48 SC simplex |
| OTB-S48-B | 48FO | 380*355.8*140.5 | 2 tray, each 24FO | 1pc PLC Splitter 1*8~32 box type | 6 PG cable entry port | 48 SC simplex |
| OTB-S48-C | 48FO | 380*355.8*140.5 | 2 tray, each 24FO | 4pcs 1*8 plastic splitter cassette Or 2pcs 1*16 plastic splitter cassette | 2 PG cable entry port | No |
YHT is a 16 years professional manufacturer of fiber optic products that certified by ISO9001:2015.
