Light Weight Termination Fiber Optic Cable Patch Panel 19'' Rotary Swing Out Type

Name: Light Weight Termination Fiber Optic Cable Patch Panel 19 Rotary Swing Out Type
Brand: CSYHT
Price: 13 USD

Wholesale Light Weight Termination Fiber Optic Cable Patch Panel 19'' Rotary Swing Out Type from china suppliers

Brand Name : CSYHT

Model Number : ODF-PRW-1U/24C

Certification : ISO9001:2015

Place of Origin : China

MOQ : 50

Price : USD13-14

Payment Terms : T/T

Supply Ability : 500 Set/Sets per week

Delivery Time : 7days

Packaging Details : Carton

splicing capacity : 24fibers

Application : FTTH FTTB FTTX Network, Telecom, CATV, LAN, DPC ETC.

Color : Black, white, customized

Product name : 19'' rotary/swing out type Patch Panel

Material : ABS Plastic

Dimension : 1U, 482*280.4*44mm

Adapter : ST, FC, SC, LC, SC/FC/LC/ST

logo : Customized available

Contact Now

abs material 19 inch Rotary swing out Type Customized Fiber Optic Cable Termination Patch Panel

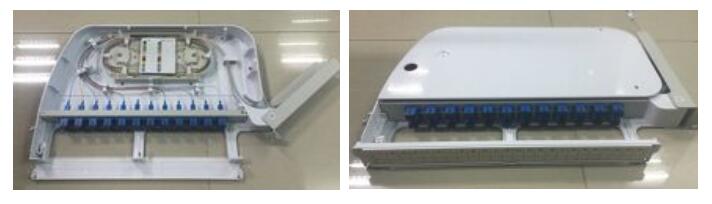

Rotary patch panel ODF-PRW-1U apply to the protective connection of cable and pigtail, the Material is High quality ABS, brackets is cold rolled steel, this panel mainly installed in fiber optic cabinet and rack.

Light Weight Termination Fiber Optic Cable Patch Panel 19'' Rotary Swing Out Type

1. Fetures:

1) Max capacity is 120cores ( LC 4port adapters)

2) Special rotary design, operation convenient

3) Variety of coled-rolled steel adapter plate for choice based on different demands

4) Material is ABS plastic, light weight.

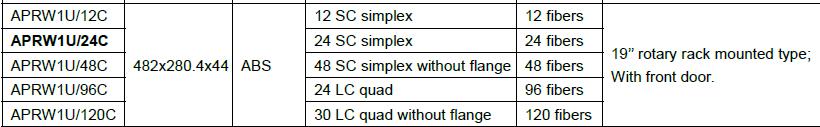

Configuration:

Model	Fiber core	Adapter	Splice tray	Splice tray model
ODF-PRW-1U/24C	24	SC simplex	1PCS	OST-022/010G
ODF-PRW-1U/48C	48	SC simplex (no screw hole type)	2PCS	OST-022/010G
ODF-PRW-1U/120C	120	LC 4port(no screw hole type)	5PCS	OST-022

Light Weight Termination Fiber Optic Cable Patch Panel 19'' Rotary Swing Out Type

WHY CHOOSE US?

What’s your best price?

Based on the quality of our products and the quantity of your order. We would quote the

best matching price all the time.

Can you provide OEM/ODM service?

Yes, we can. Please let us know your detail requirements

Can you list some of your main customers?

Domestic: China Telecom, China Mobile, China Unicom, Huawei, Fiberhome, ZTE, etc.
Abroad: Furukawa, Fujikura, TOT, Etisalat, STC, Commscope, Verizon, Duratel, Smart, etc.

Why choose YHT to cooperate?

1. Reliable & Experienced communication equipment manufacturer for 16 years.
2. First-class production line and strict quality management system.
3. Professional procedure system and bulk production capacity to guarantee fast delivery.
4. Most competitive price to meet your budget.
5. Professional R&D team to design and innovate new products based on our rich experience.
6. Fast & Effective after sales service.One year warranty(free change if quality problem),

three year maintenance.

7. wide products series like FTTH box,ODF,splice closure,pigtail,patch cord and others fiber optic producsts for choosing
